PANOS INFINITY / EVOLUTION R

LED downlight range

LED downlight series for functional and architectural lighting.
Unrivalled in lighting quality and energy efficiency.

PANOS INFINITY / EVOLUTION R

Videos and links

PANOS INFINITY / EVOLUTION R

LED downlight range

Emphasis on flexible features
PANOS infinity Adjustable:
R68 V, Q68 V, R100 V, Q100 V
Emphasis on horizontal features
PANOS infinity Accent Beam:
R100, Q100
PANOS infinity and PANOS evolution:
R68, Q68
PANOS infinity High Lumen R200
Illuminating vertical surfaces
PANOS infinity Wallwasher: R68, Q68, R100, Q100, R150, R200

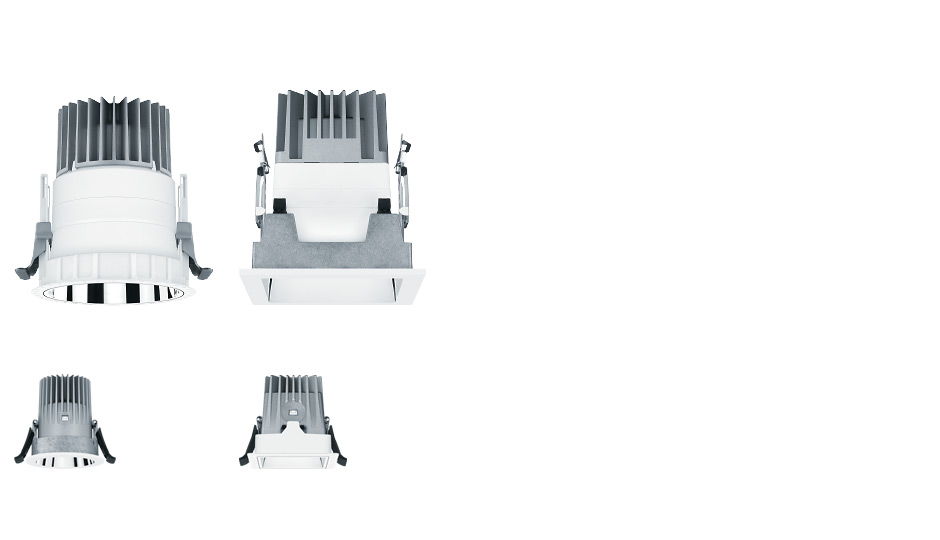

Lighting of horizontal surfaces
PANOS infinity and PANOS evolution: R100, Q100, R150, Q140, R200, Q190
Emphasis
Surfaces

PANOS INFINITY / EVOLUTION R

Future-proof technology concept

Even the standard versions of PANOS infinity and PANOS evolution provide a high protection rating of IP44. If an additional cover is used, even a rating of IP54 is possible.
High-quality reflector technology
Highly efficient lighting chamber
"BEST-IN-CLASS" LED
Highly efficient passive cooling system made of aluminium

PANOS INFINITY / EVOLUTION R

Future-proof technology concept

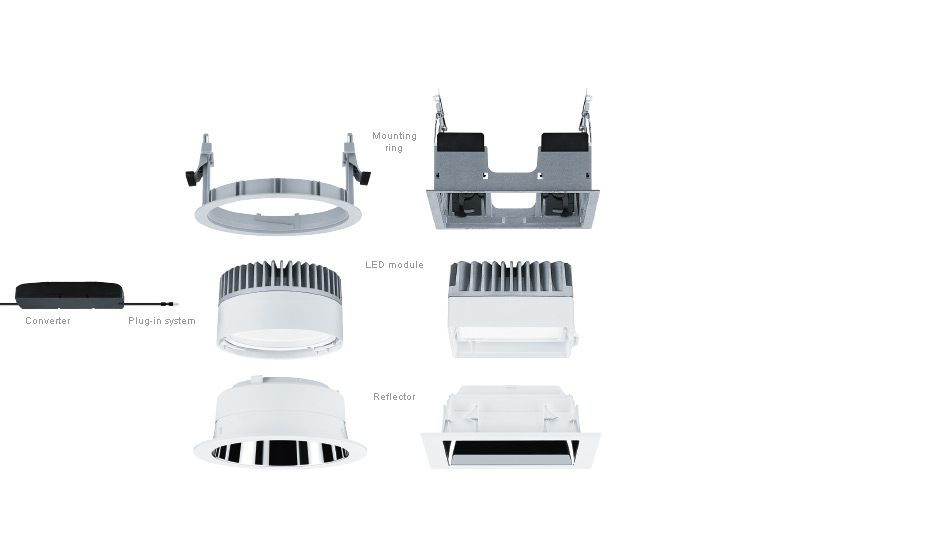

Future-proof modular system
  • Modular cartridge system – just a few steps required to replace LED module
  • LED mixing chamber and cooling system combined to form a unit, provide thermally ideal connection of LEDs to heat sink
  • Control gear with spacious wiring compartment and through-wiring option



Easy to install

  • Tried-and-tested installation functions have been optimised
  • Reflector attached to LED module via twist-and-lock fastener
  • Mounting ring for installing luminaire on the ceiling
  • Planar rings for fastening frameless luminaires

PANOS INFINITY / EVOLUTION R

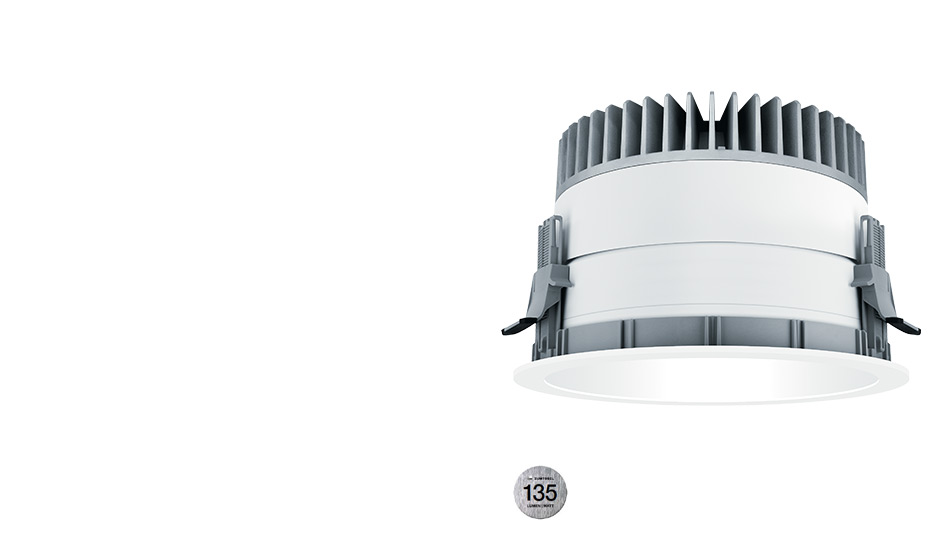

Outstanding lighting quality

Highest luminaire efficiency
  • Luminaire efficiency of up to 135 lumens per watt
    owing to innovative LED multi-channel technologies incorporating red/white boards

Powerful lumen packages

  • Luminous flux of luminaire: 800, 1000, 1800, 2400 or 5400 lumens
  • Efficient alternative to all single or twin-lamp downlights fitted with 18 W, 26 W or 32 W compact fluorescent lamps

Dimming or switching

  • The PANOS infinity standard version is DALI dimmable
  • Additional potential savings thanks to intelligently controlled lighting solutions, which reduce energy consumption
    by 70 percent
  • PANOS evolution comes with a switchable 230 V converter as standard, but is optionally also available with DALI control gear.

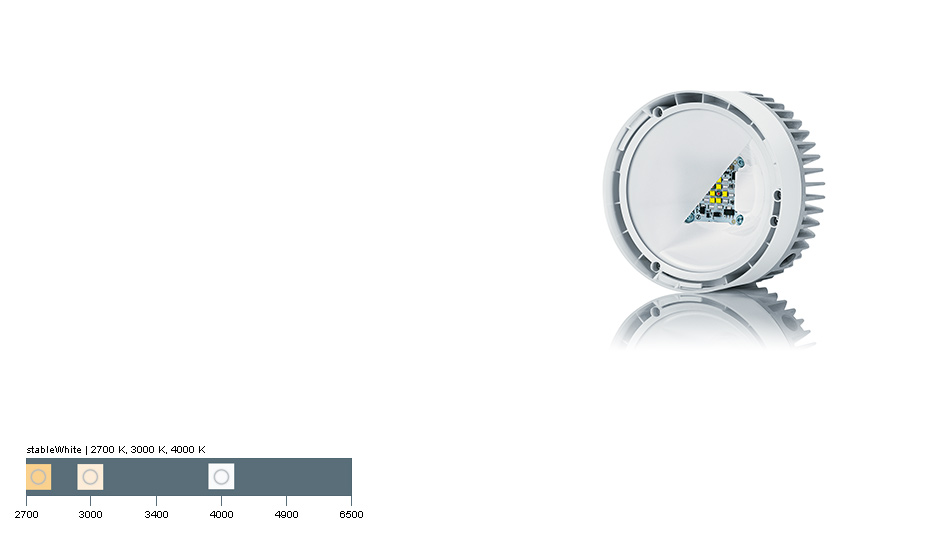

PANOS infinity

  • Luminaire efficiency of 135 lumen per watt
  • With Ra levels exceeding 90 and MacAdam 2, PANOS infinity ranks first among LED downlights in terms of quality
  • Red/white multi-channel technology ensures intelligent interaction of high-efficiency white and red LEDs therefore for outstanding luminaire efficiency and colour rendering over the entire service life
  • Low luminous flux reduction of only 5 % (L95) over a service life of 50,000 hours
  • Optionally available with colour temperatures of 4000 Kelvin and 3000 Kelvin

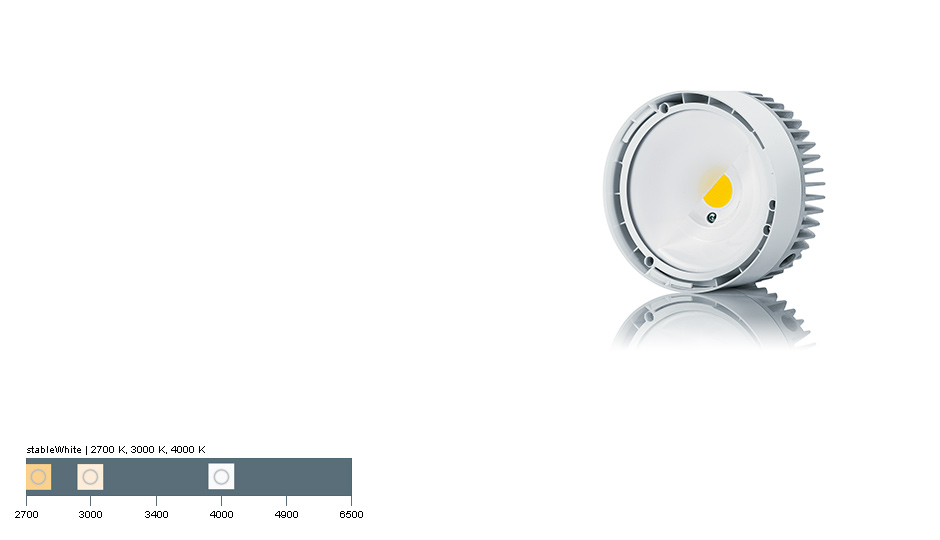

PANOS evolution

  • Boasts many product features of the PANOS infinity
  • Efficient and at the same time powerful single-channel phosphor LED modules with up to 120 lm/W luminaire efficiency
  • Colour rendering of Ra > 80
  • Proven technologies and an efficient heat management guarantee an excellent lighting quality with a rated service life of 50,000 hours L85
  • Optionally available with colour temperatures of 4000 Kelvin, 3000 Kelvin

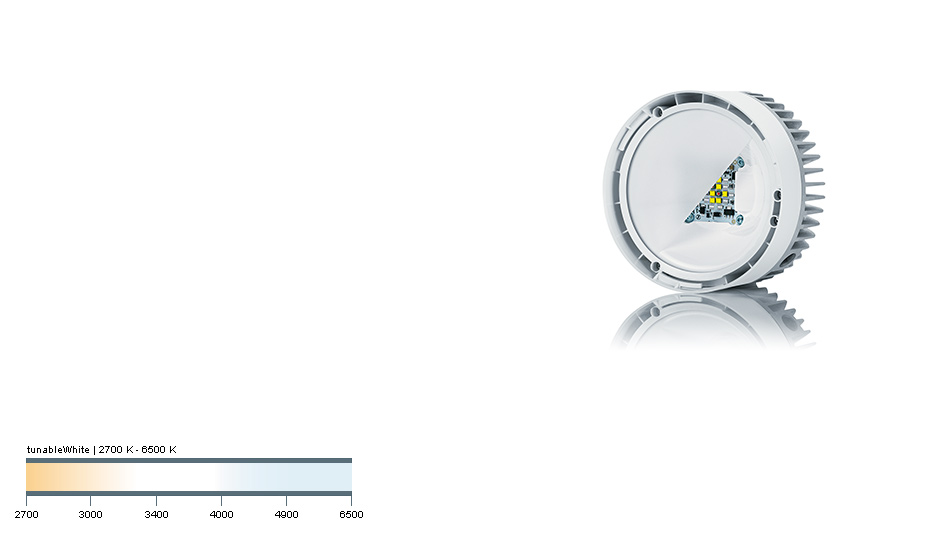

PANOS infinity tunableWhite

  • Unique Pi-LED technology

  • The whole white range from 2700 K to 6500 K is covered

  • Colour rendering index of Ra 90 at any colour temperature

  • Colour temperature can be individually adjusted to follow the natural course of daylight, for instance, or to provide accent lighting to object surfaces

  • Controlled via DT8 2010


tunableWhite by Zumtobel: zumtobel.com/tunablewhite

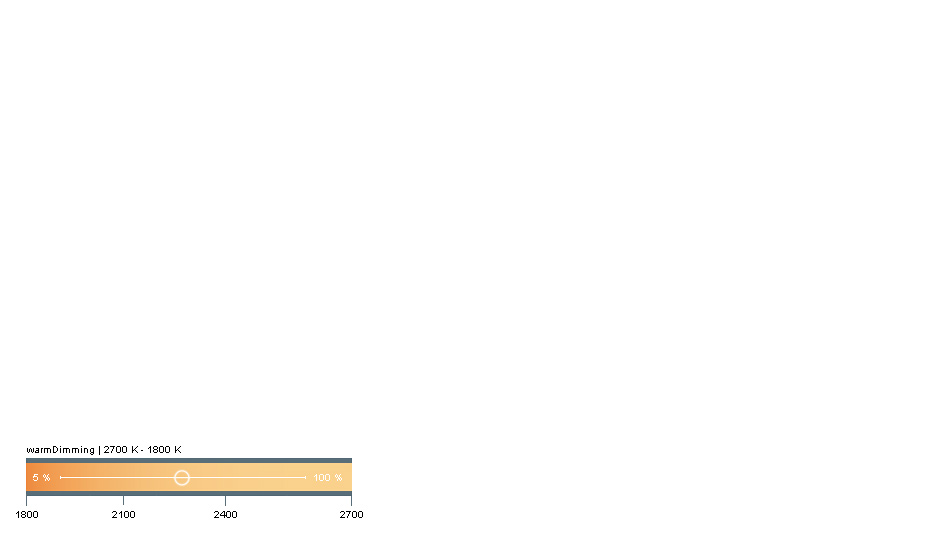

PANOS infinity warmDimming

  • warmDimming technology allows for pleasantly warm light at low illuminance levels, similar to light produced by a classic light bulb

  • Colour temperature of 2700 K at full illuminance

  • Reduced to 1800 K at lowest dimming level

  • Colour sequence along the Planckian curve with levels of Ra 90 across the entire colour spectrum ensures maximum lighting quality
Glare-free, highly efficient light at the workplace

  • High-quality reflector technology with precision formed reflectors made of high-quality polycarbonate ensures optimum light distribution
  • All PANOS infinity and PANOS evolution downlights meet the requirements specified in EN 12464 for lighting in offices and communication rooms
  • Glare reduction factor UGR < 19 for high version via high-quality FAL or AL reflectors
  • Good glare control for low version (installation depth <90mm) via internal glare control ring as an accessory, which is fixed in the reflector (also suitable for frameless version)

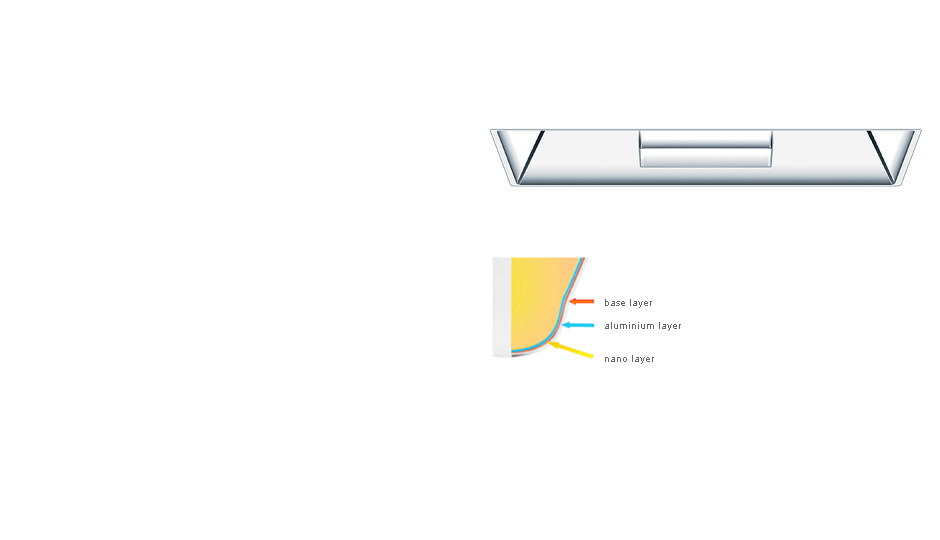

  • Use of sputter technology for FAL and AL surfaces. The ultra-thin aluminium surface, applied in a vacuum process, achieves the highest efficiencies with a high degree of visual comfort due to the darklight effect. The reflectors are iridescence-free and always shine due to easy cleaning.
Second-to-none in efficiency
PANOS infinity
PANOS evolution
PANOS infinity tunableWhite
PANOS infinity warmDimming
Glare-free, highly efficient light at the workplace

PANOS INFINITY / EVOLUTION R

LED downlight range

Diameters
ø 68 mm, ø 100 mm | □ 68 mm, □ 100 mm

Colour temperatures
2700 K, 3000 K, 4000 K | 2700 – 1800 K

Lumen packages
700 – 1600 lm

Beam angle
Spot, Flood, Very wideflood

Colour rendering
PANOS infinity Ra > 90 | PANOS evolution Ra > 80

Reflector surface finishes
Smooth | Matt silver | Painted | Gold | Black

Mounting frame
with frame, PANOS infinity also frameless

Attachments and accessories
IP covers, concrete casting surround, planar ring, planar frame
PANOS infinity Q68
Model: frameless
PANOS infinity 68
Model: with frame
PANOS infinity Q100
Model: HG with frame
PANOS infinity R100
Model: HG frameless

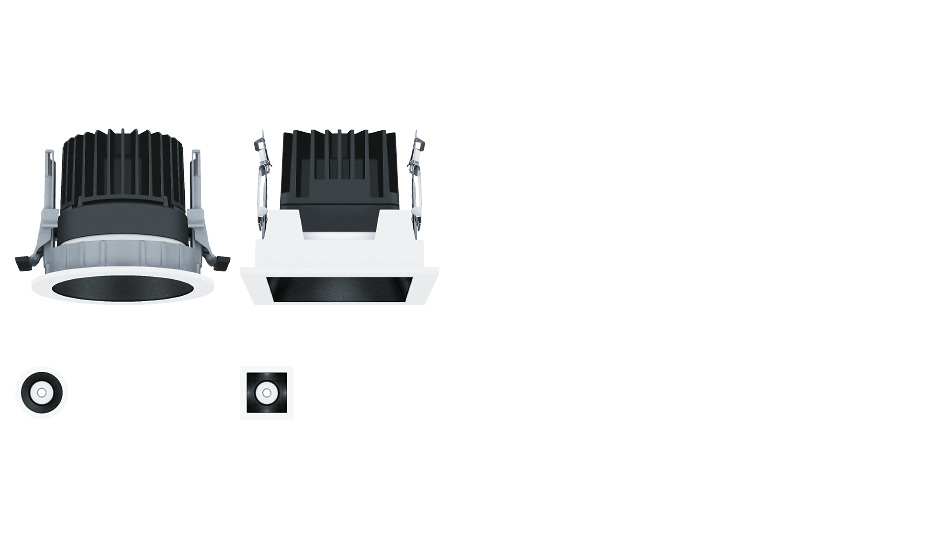

PANOS infinity Q100 L
Model: Accent Beam,
black reflector with frame
PANOS infinity R100 L
Model: Accent Beam,
black reflector with frame
Diameter
ø 100 mm |  100 mm

Colour temperatures
2700 K | 3000 K | 4000 K

Lumen packages
700 – 900 lm

Beam angle
With lens system for high-quality accent lighting of horizontal surfaces
Spot 14° | Flood 29° | Very wideflood > 50°

Colour rendering
PANOS infinity Ra > 90

Reflector surface finishes
High gloss | Silver matt | White | Gold | Black

Mounting frame
with frame | frameless

Attachments and accessories
IP covers, concrete casting surround,
planar ring, planar frame
Diameter
ø 200 mm

Colour temperatures
2700 K | 3000 K | 4000 K

Lumen packages
4700 – 7400 lm

Beam angle
Spot 13° | Flood 30°

Colour rendering
PANOS infinity Ra > 90

Reflector surface finishes
Smooth | Facetted

Mounting frame
with frame, white cover ring

Attachments and accessories
IP covers

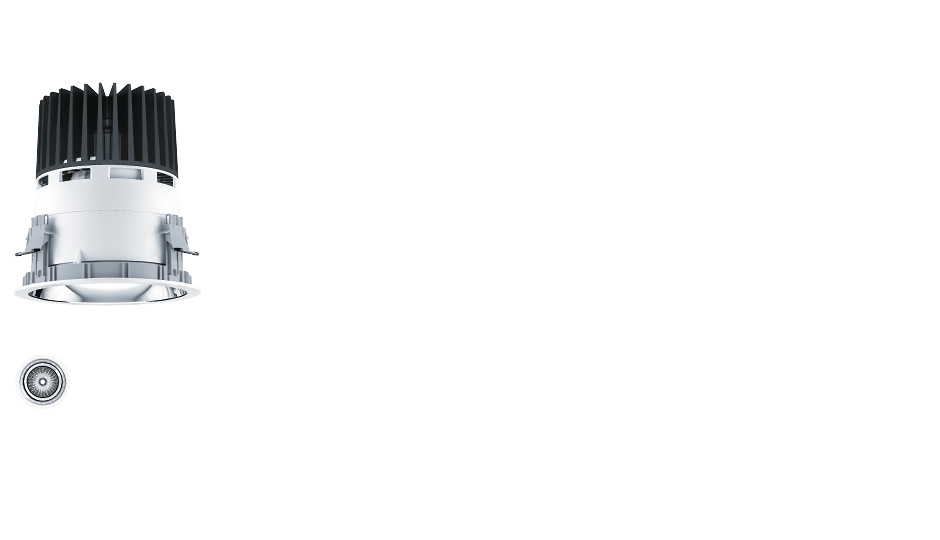

PANOS infinity R200
Model: High Lumen with frame

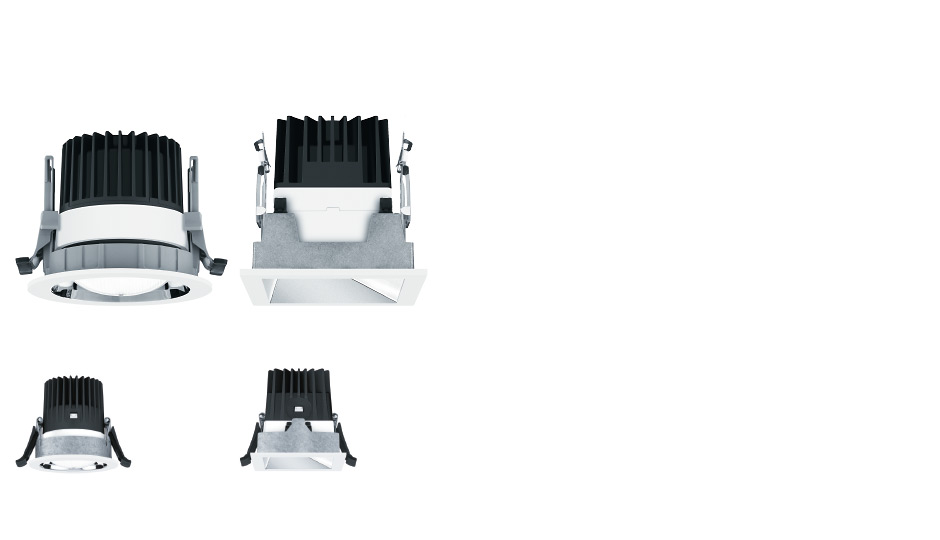

PANOS infinity R100 WW
Model: with frame
PANOS infinity Q100 WW
Model: with frame
PANOS infinity R68 WW
Model: with frame
PANOS infinity Q68 WW
Model: with frame
Diameters
ø 68 mm | □ 68 mm
ø 100 mm | □ 100 mm

Colour temperatures
2700 K | 3000 K | 4000 K

Lumen packages
800 – 1800 lm

Colour rendering
PANOS infinity Ra > 90

Reflector surface finishes
High gloss

Mounting frame
with frame | frameless

Attachments and accessories
IP covers, concrete casting surround, planar ring, planar frame

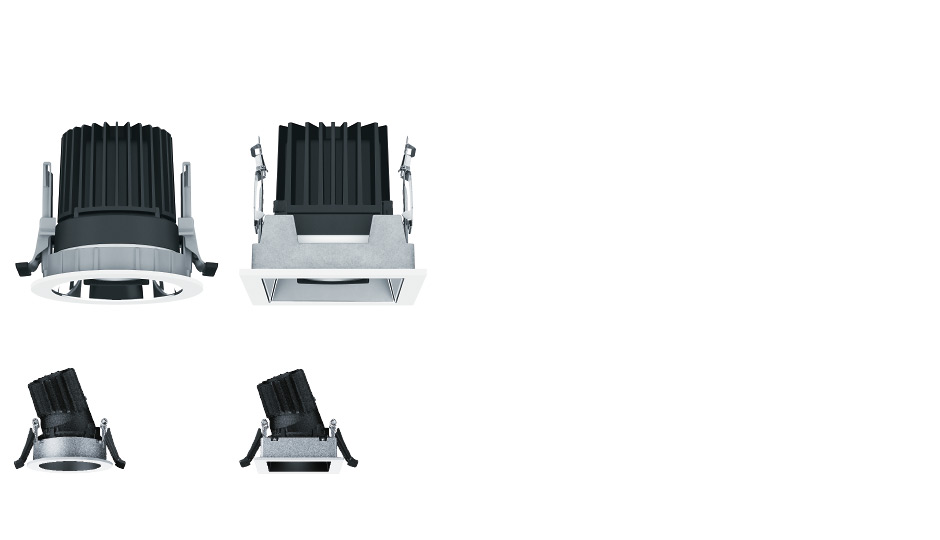

PANOS infinity Q68 V Adjustable
Model: with frame
PANOS infinity R68 V Adjustable
Model: with frame
Diameters
ø 68 mm | □ 68 mm
ø 100 mm | □ 100 mm

Alignment
68: can be rotated by ± 355° and swivelled by 27°
100: can be rotated by ± 360° and swivelled by 32°

Beam angles
68: Spot 18° | Flood 30°
100: Spot 15° | Flood 24°

Colour temperatures
2700 K | 3000 K | 4000 K

Lumen packages
68: up to 625 lm
100: up to 780 lm

Colour rendering
PANOS infinity Ra > 90

Reflector surface finishes
High gloss | Silver matt | White | Gold | Black

Mounting frame
with frame | frameless

Attachments and accessories
IP covers, concrete casting surround,
planar ring, planar frame
PANOS infinity Q100 Adjustable
Model: with frame
PANOS infinity R100 Adjustable
Model: with frame

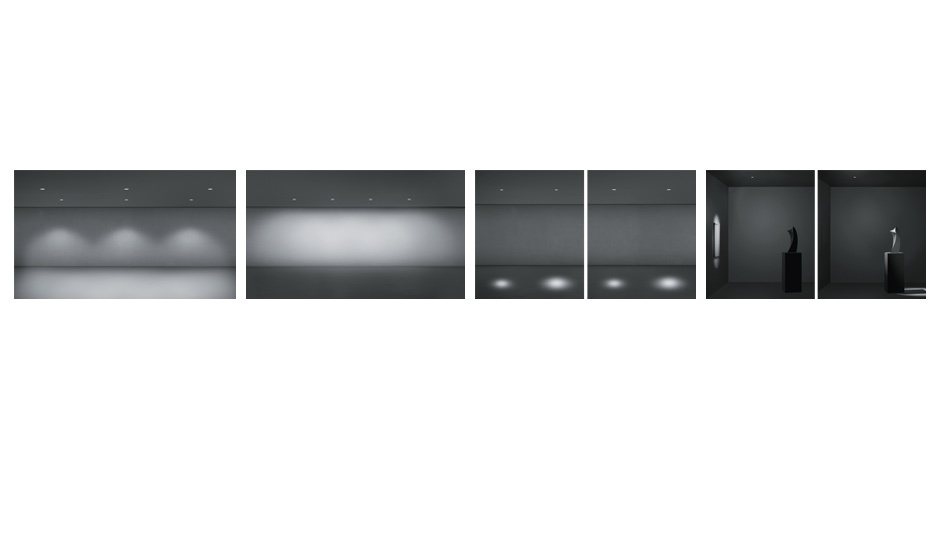

Horizontal Surfaces
Accent Beam
High Lumen
Wallwashing
Accent Lighting

PANOS INFINITY / EVOLUTION R

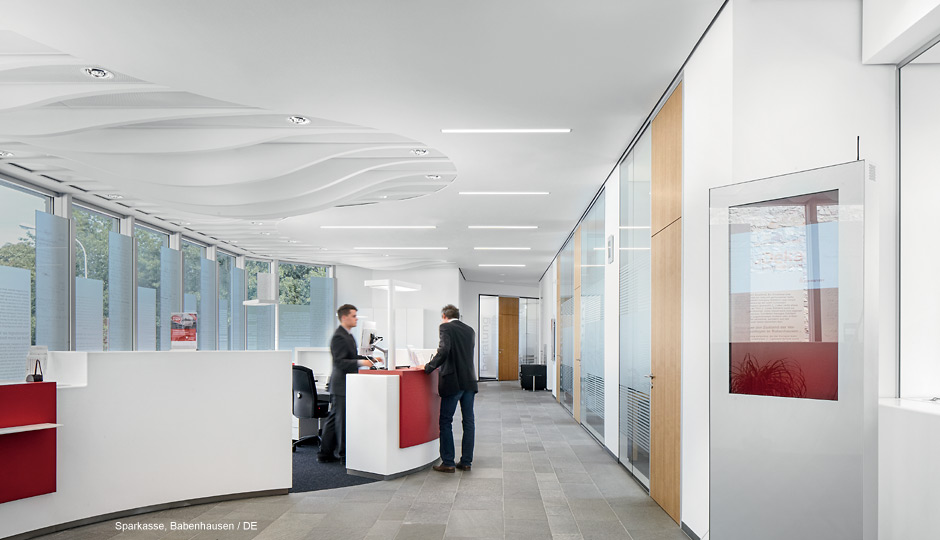

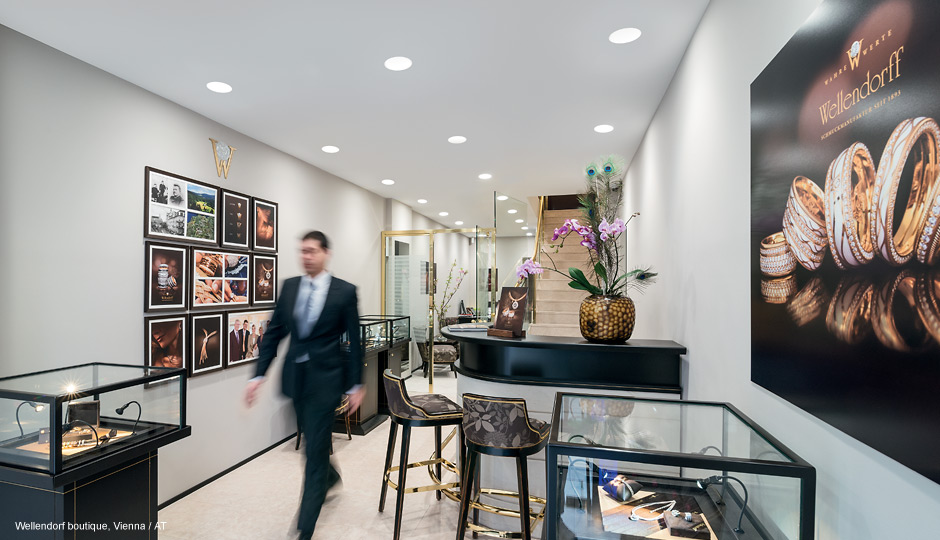

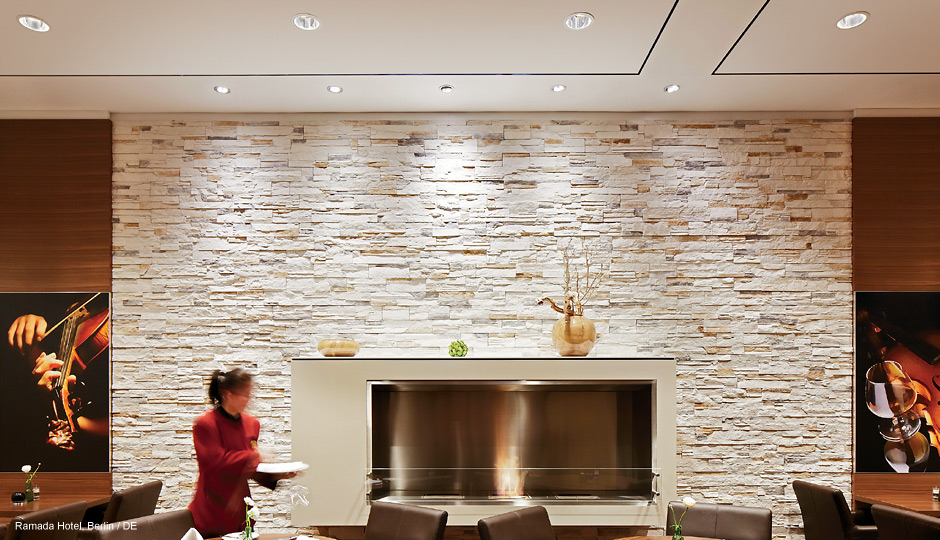

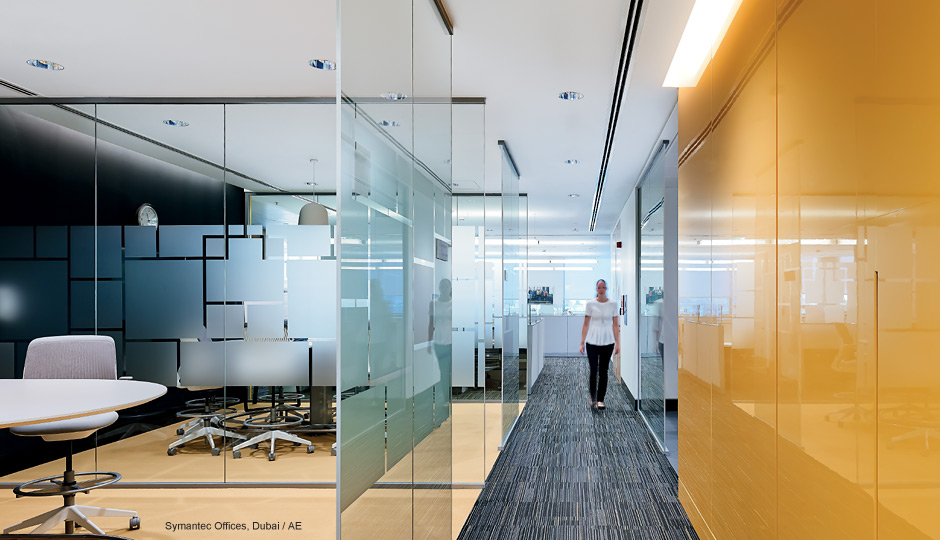

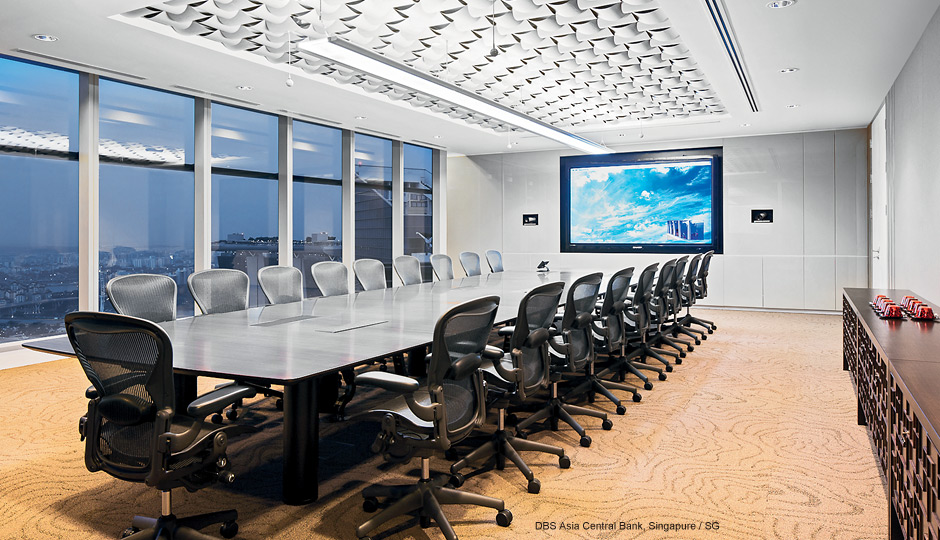

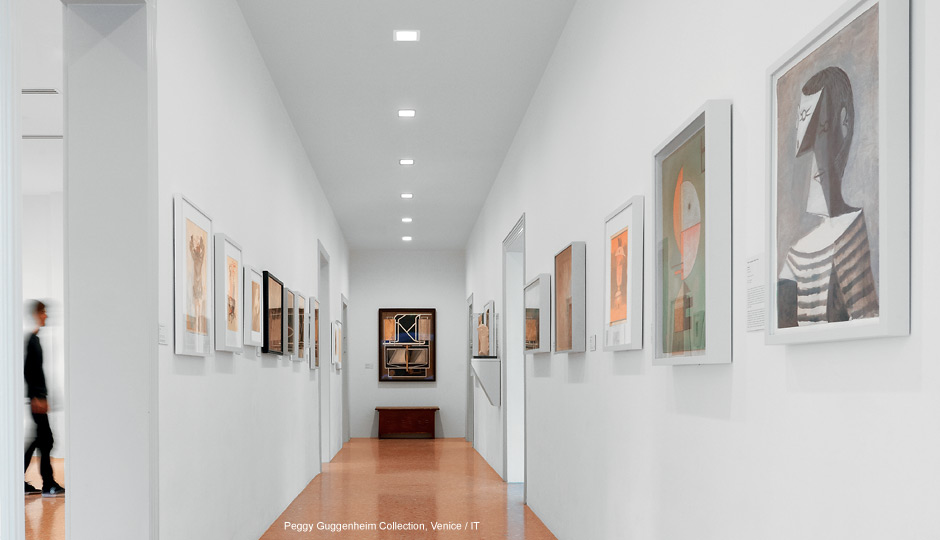

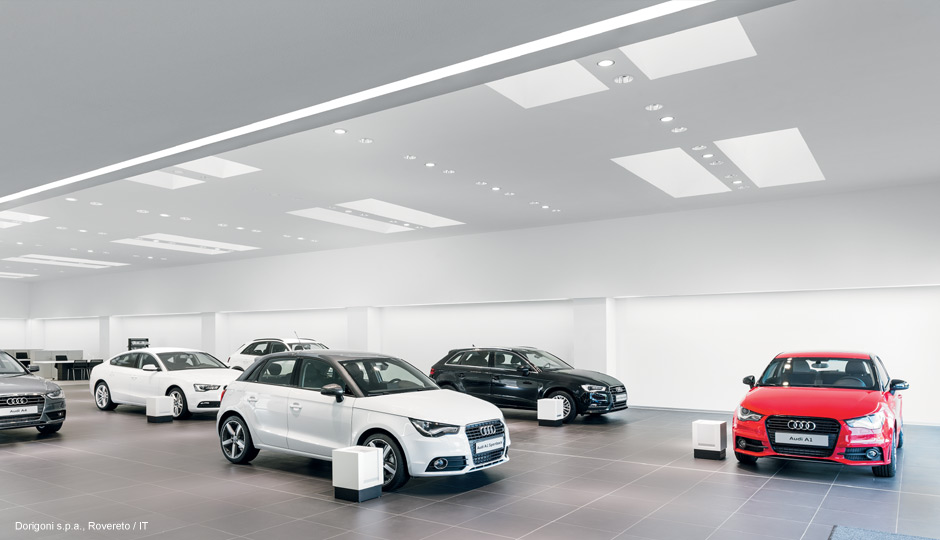

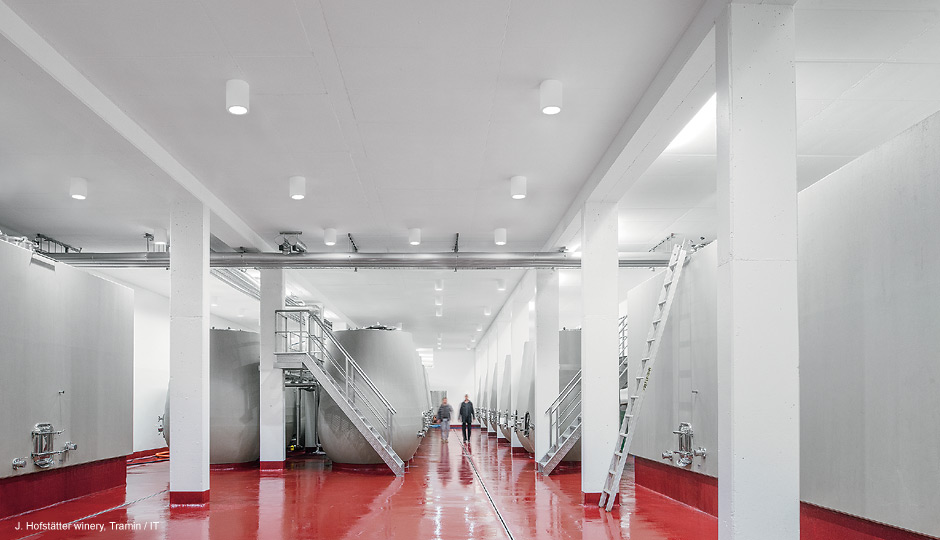

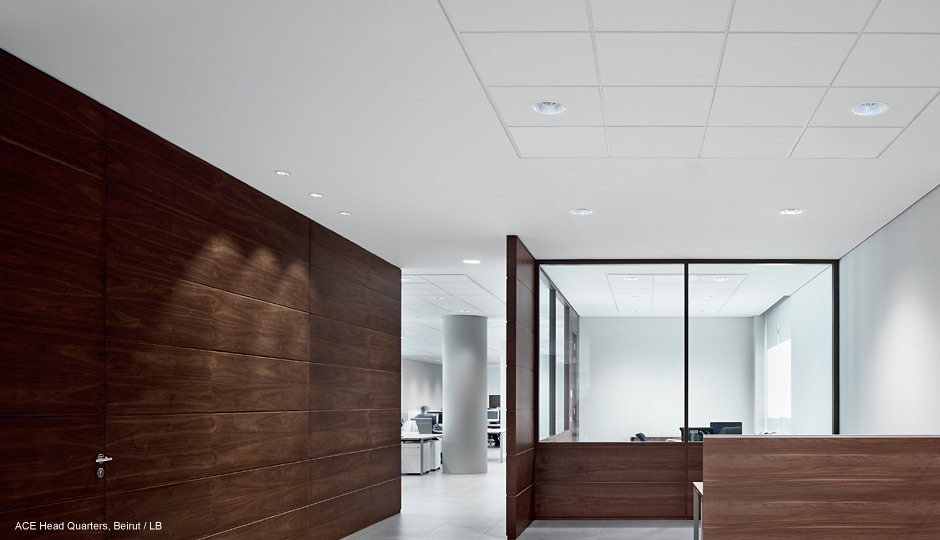

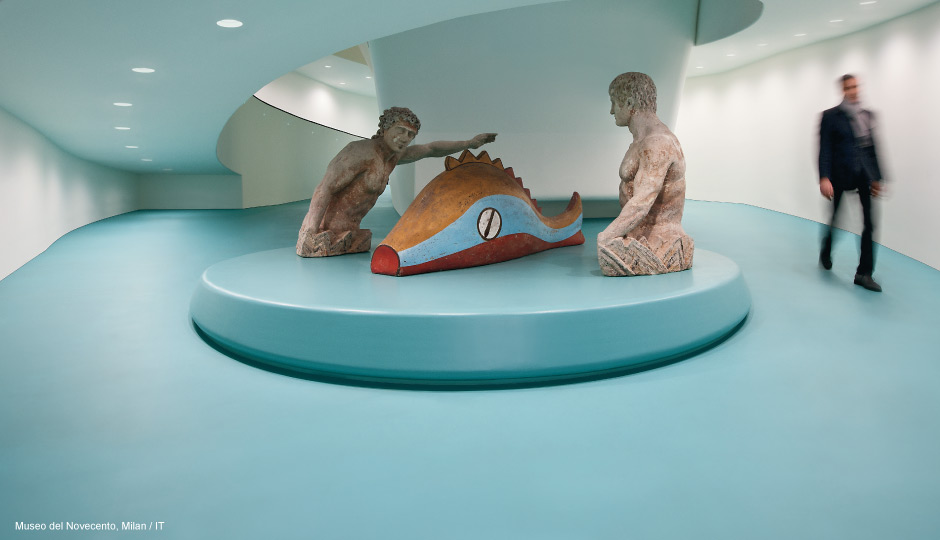

Examples of application versatility
